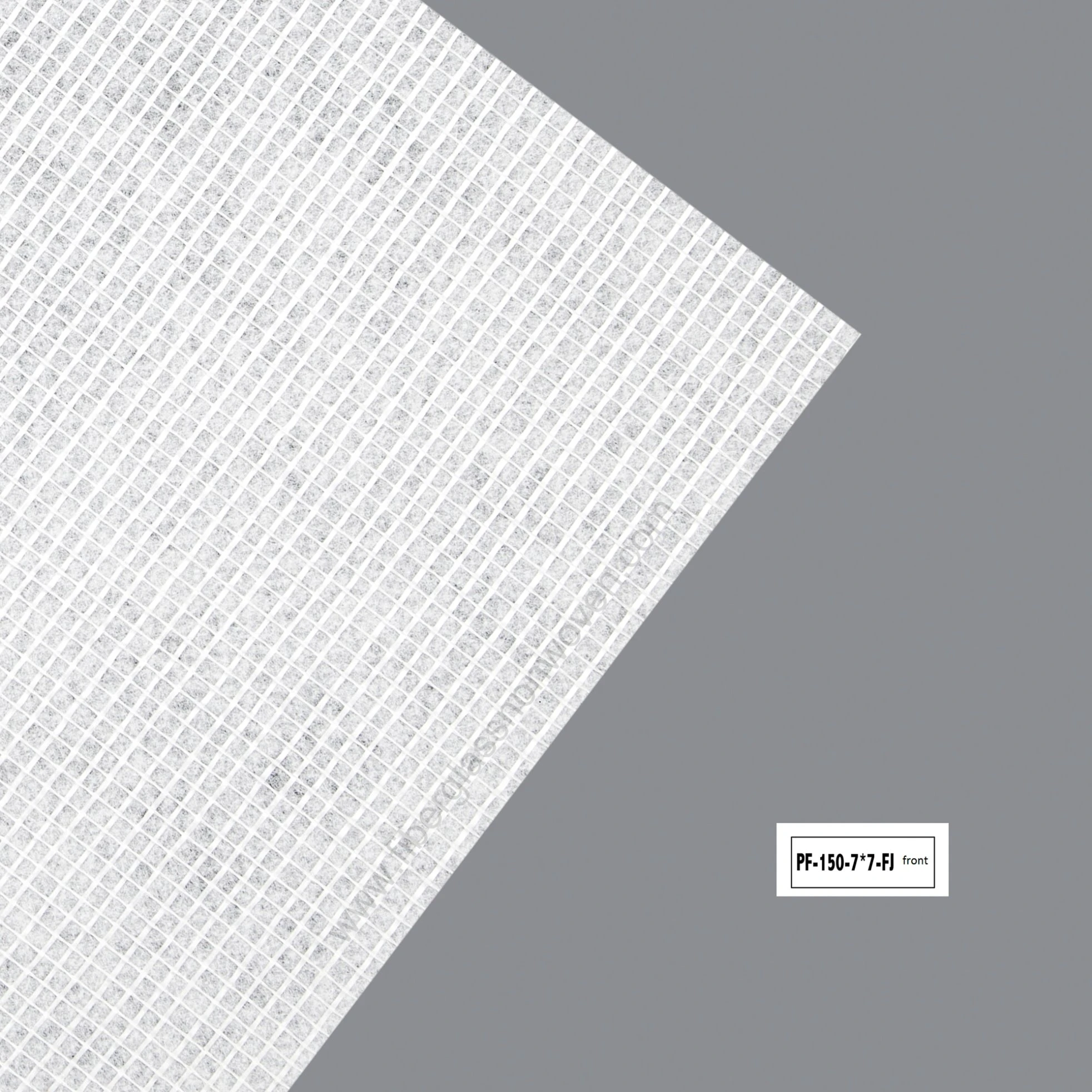

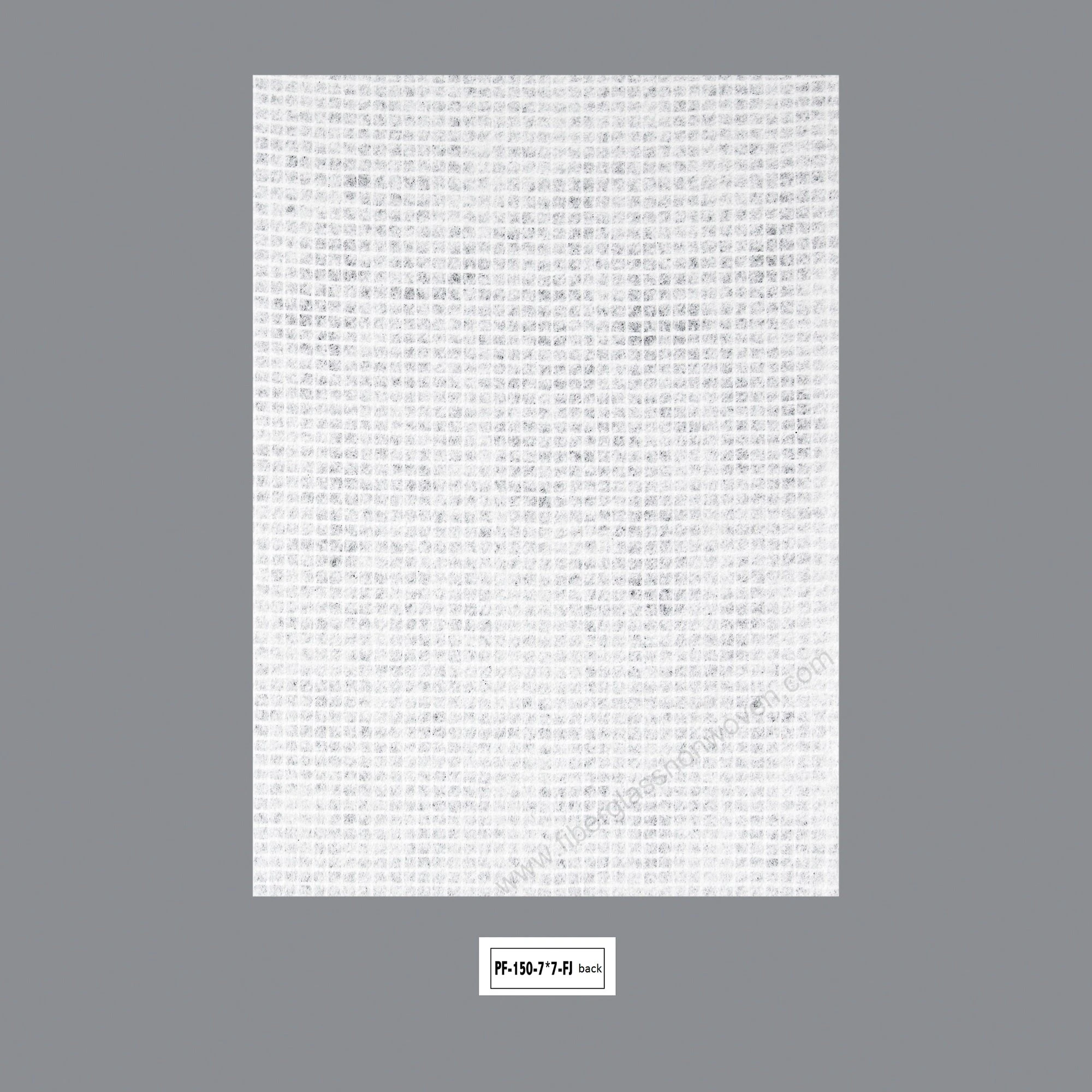

Fiberglass mesh reinforced polyester mat
Fiberglass mesh reinforced polyester mat is polyester mat reinforced by fiberglass scrim. This mat is mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrapping material, geotextile material, reinforcement of sports floors, reinforcement and waterproofing of high-ways, airport runways, etc. Thefiberglass mesh reinforced polyester mat features high tensile strength, high tear strength, corrosion resistance and easy soakage by bitumen. The tensile strength of the fiberglass mesh reinforced polyester mat is adjustable by changing the mesh size of all yarns to meet different requirements.
Customization
Fiberglass mesh reinforced polyester mat in above table are the standard types Nanjing EFG CO., LTD is delivering to overseas customers, if customer wants composite material in specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce reinforced mat as per customer's requirement, offer tailored service to customers from different countries.
Packing
Every roll in plastic film, two rolls in one pallet.
Pallet is free of fumigation, fumigation certificate is available.
Loading quantity
44rolls per 40 feet container without pallet;
40rolls per 40 feet container with pallet.
Markets
Nanjing EFG CO., LTD. has delivered composite mat to Middle East, North Africa, South Africa, Asian customers since 2006, with ensured quality and rich experience for export deliveiry.
Nanjing EFG CO., LTD welcomes the cooperation with bitumen membrane manufacturers, retailers from all of the world.
Delivery
Compound mat will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer's port by MSK, MSC, CMA, COSCO, YANGMING, APL, etc.
Payment
LC, TT, CAD, PAYPAL, WESTERN UNION, ETC.
After sales service
Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the reinforced mat, and offer any help for customer's demand in any time.
Technical support
If customer meets any problem about technic, formula during producing ABB or SBS modified bitumen membrane, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer's factory for guiding if necessary.
Fiberglass mesh reinforced polyester mat is polyester mat reinforced by fiberglass scrim. This mat is mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrapping material, geotextile material, reinforcement of sports floors, reinforcement and waterproofing of high-ways, airport runways, etc. Thefiberglass mesh reinforced polyester mat features high tensile strength, high tear strength, corrosion resistance and easy soakage by bitumen. The tensile strength of the fiberglass mesh reinforced polyester mat is adjustable by changing the mesh size of all yarns to meet different requirements.
Features
- Low cost.
- Easy application.
- Aging resistance.
- High temperature resistance.
- Extends the life of waterproofing bitumen membrane and road.
- Increases the tensile strength and tear strength of waterproofing bitumen membrane.
Applications
- To wrap the pipe line.
- To be used as substrate material of waterproofing bitumen membrane.
- To be used as reinforcement material of sports floors.
- To be used as paving mat to reinforce, waterproof and anti-cracking of highways, airport runways, etc.
- To be used as geotextile material.
Technical Data
| Item No. | Unit | PF120-4X4-FB | PF120-5X5-FB | PF130-6X6-FB | PF150-7X7-FJ |
| Area Weight | g/m2 | 120 | 120 | 130 | 150 |
| Width | mm | 1000 | 1000 | 1000 | 1000 |
| Length | m | 1250 | 1250 | 1200 | 1100 |
| Tensile Strength MD | N/5CM | 300 | 400 | 450 | 500 |
| Tensile Strength CD | N/5CM | 100 | 200 | 250 | 450 |
| Roll Diameter | mm | 770 | 770 | 770 | 770 |
| Core Diameter | mm | 76 | 76 | 76 | 76 |
| Moisture | % | <2.5 | <2.5 | <2.5 | <2.5 |
Customization
Fiberglass mesh reinforced polyester mat in above table are the standard types Nanjing EFG CO., LTD is delivering to overseas customers, if customer wants composite material in specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce reinforced mat as per customer's requirement, offer tailored service to customers from different countries.
Packing
Every roll in plastic film, two rolls in one pallet.
Pallet is free of fumigation, fumigation certificate is available.
Loading quantity
44rolls per 40 feet container without pallet;
40rolls per 40 feet container with pallet.
Markets
Nanjing EFG CO., LTD. has delivered composite mat to Middle East, North Africa, South Africa, Asian customers since 2006, with ensured quality and rich experience for export deliveiry.
Nanjing EFG CO., LTD welcomes the cooperation with bitumen membrane manufacturers, retailers from all of the world.
Delivery
Compound mat will be loaded into container in factory, then be delivered to the sea port, finally be shipped to Customer's port by MSK, MSC, CMA, COSCO, YANGMING, APL, etc.
Payment
LC, TT, CAD, PAYPAL, WESTERN UNION, ETC.
After sales service
Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the reinforced mat, and offer any help for customer's demand in any time.
Technical support
If customer meets any problem about technic, formula during producing ABB or SBS modified bitumen membrane, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer's factory for guiding if necessary.
